ASF is a leading manufacturer of vast range of electrical HV/EHV Cable Cleats Single & Tri Foil. Our products are strictly manufactured as per International standard and client’s specification. Our Cable Cleats withstood short circuit for 25 kA /40 kA / 63 kA. . The cleats are supplied with bolts washers and spring which are galvanized steel.

As Quality is our prime concern, our quality control specialists use computerized systems to check and double check the quality standard for each product. This meticulous attention to detail ensures long years of trouble-free performance on the site.

TECHNICAL:

Cable Cleats are designed to fix, retain and support cables. In addition, where short circuit faults are anticipated, correct cleating will result in the containment of the Cable during a fault and enable the circuit to restore once the fault has been repaired.

SINGLE CABLE CLEATS

Single Cable Cleats are specially designed for the suitable various type of Single Core Cable and it is made of the full high quality of Aluminum Alloy material. These Cleats are fixed directly to channel or ladder in indoor or outdoor areas.

TRI-FOIL CABLE CLEATS

Trefoil Cable cleats are used for high voltage single core cables, wherein the current rating is high and Three core cables are not available. The trefoil cleats are used for laying single core cable in trefoil touching formatting which helps to maintain magnetic symmetry thereby avoiding electromagnetic heating and loss of current and it is nullify the induced magnetic field of high voltage power cables.

Single cable cleat
Tri Foil Cable Cleat

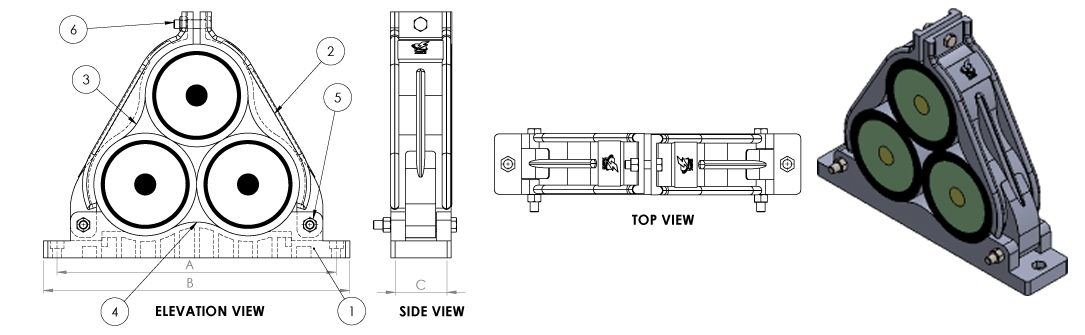

CABLE & CLEAT SELECTION CLEAT DETAILS STUD SIZE
DESIGN CABLE DIAMTER A B C M
MODEL MIN MAX MM MM MM MM
ASG 11 35 25 35 60 85 50 10
ASG 11 45 35 45 70 95 50 10
ASG 11 55 45 55 80 105 50 10
ASG 11 65 55 65 90 115 50 10
ASG 11 75 65 75 116 148 70 10
ASG 11 85 75 85 126 159 70 10
ASG 11 95 85 95 136 176 80 12
ASG 11 105 95 105 146 183 90 12
ASG 11 115 105 115 156 193 90 12
ASG 11 125 115 125 166 203 90 12
ASG 11 135 125 135 176 213
90 12
ASG 11 145 135 145 180 216 90 12
ASG 11 155 145 155 188 215 85 12

CABLE & CLEAT SELECTION CLEAT DETAILS
DESIGN CABLE DIAMTER A B C
MODEL MIN MAX MM MM MM
ASG 10 35 25 35 144 181.5 50
ASG 10 45 35 45 164 209 50
ASG 10 55 45 55 184 217.5 50
ASG 10 65 55 65 220 256 60
ASG 10 75 65 75 240 276 70
ASG 10 85 75 85 268 306 75
ASG 10 95 85 95 288 326 85
ASG 10 105 95 105 310 348 85
ASG 10 115 105 115 330 368 85
ASG 10 125 115 125 350 388 85
ASG 10 135 125 135 370 408
85
ASG 10 145 135 145 384 420 85
ASG 10 160 145 155 420 460 90
